CNC Milling
Precision CNC Milling
for Custom Parts
CNC milling support for custom housings, enclosures, plates, brackets, fixtures and other machined components, with drawing review, manufacturing planning and dimensional inspection considered as part of the project.
Milling capabilities
CNC Milling for Drawing-Driven Parts
The manufacturing approach should be selected according to part geometry, feature access, dimensional requirements, material and production quantity.
- 01
Pocket & Cavity Milling
Machining strategies can be reviewed for open pockets, enclosed cavities and stepped internal features.
- 02
Bores & Threaded Features
Bores, counterbores, hole patterns and threaded features are considered together with access and datum requirements.
- 03
Profiles & Contours
External profiles, edge features and contoured surfaces can be planned according to the drawing and part geometry.
- 04
Multi-Feature Components
Parts combining pockets, holes, mating faces and other milled features require a coordinated machining sequence.
Part & feature review
Built Around the Features Your Part Requires
Milling suitability depends on the drawing, feature accessibility, material and dimensional requirements. The process should be reviewed around the component rather than assumed from its category alone.
- 01Housings & Enclosures
- 02Plates & Brackets

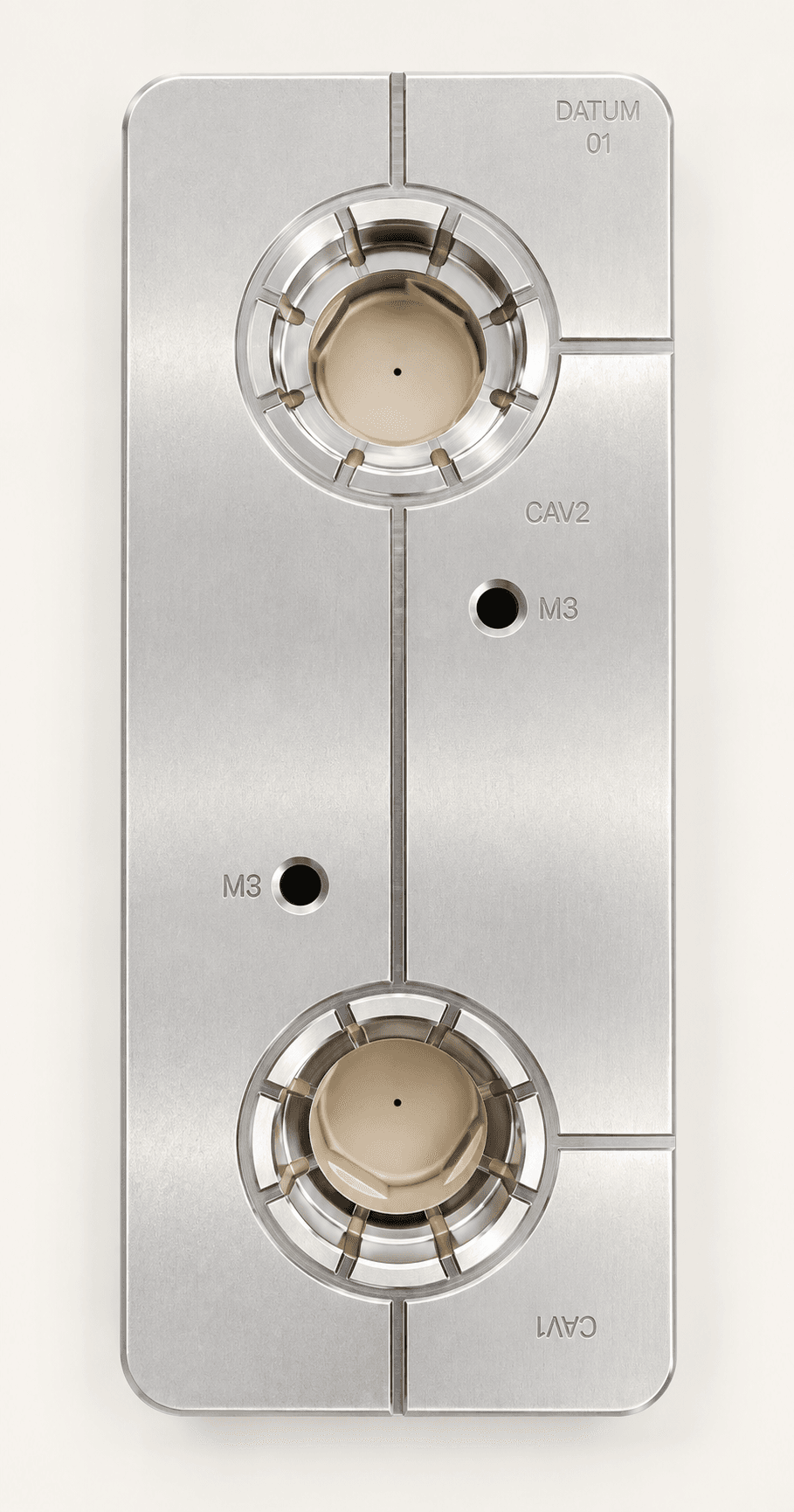

- 03Fixtures & Tooling Components
- 04Pockets & Cavities
- 05Bores & Hole Patterns
- 06Threaded Features
- 07Mating Surfaces
- 08Multi-Feature Components
Material review
Materials for CNC Milling
Material selection is reviewed together with component geometry, feature requirements, surface finish and production quantity.
Aluminum Alloys
Stainless Steels
Carbon & Alloy Steels
Titanium Alloys
Engineering Plastics
High-Performance Alloys
Machining strategy
Setup Planning Matters for Milled Parts
Milling quality depends on more than selecting a machine. Workholding, datums, feature access, machining sequence and inspection planning should be considered together before production.
- 01
Workholding Strategy
Plan how the component can be located and supported through the required machining stages.
- 02
Datum Planning
Review datum structure and feature relationships before selecting the manufacturing sequence.
- 03
Tool Accessibility
Consider cutter access, reach and clearance around pockets, walls and adjacent features.
- 04
Machining Sequence
Coordinate roughing, finishing and feature creation around the geometry of the component.
- 05
Feature Relationships
Review how bores, holes, faces and pockets relate to shared drawing requirements.
- 06
Inspection Planning
Define how critical features can be verified within the proposed manufacturing approach.
Quality control
Inspection Planned Around Critical Features
Inspection planning is reviewed together with the drawing, dimensional requirements and proposed manufacturing approach.
- 01Drawing-based inspection
- 02Dimensional verification
- 03CMM measurement where appropriate
- 04Critical feature verification
- 05Hole and bore relationship review
- 06Mating surface checks
- 07Documentation when required
Representative components

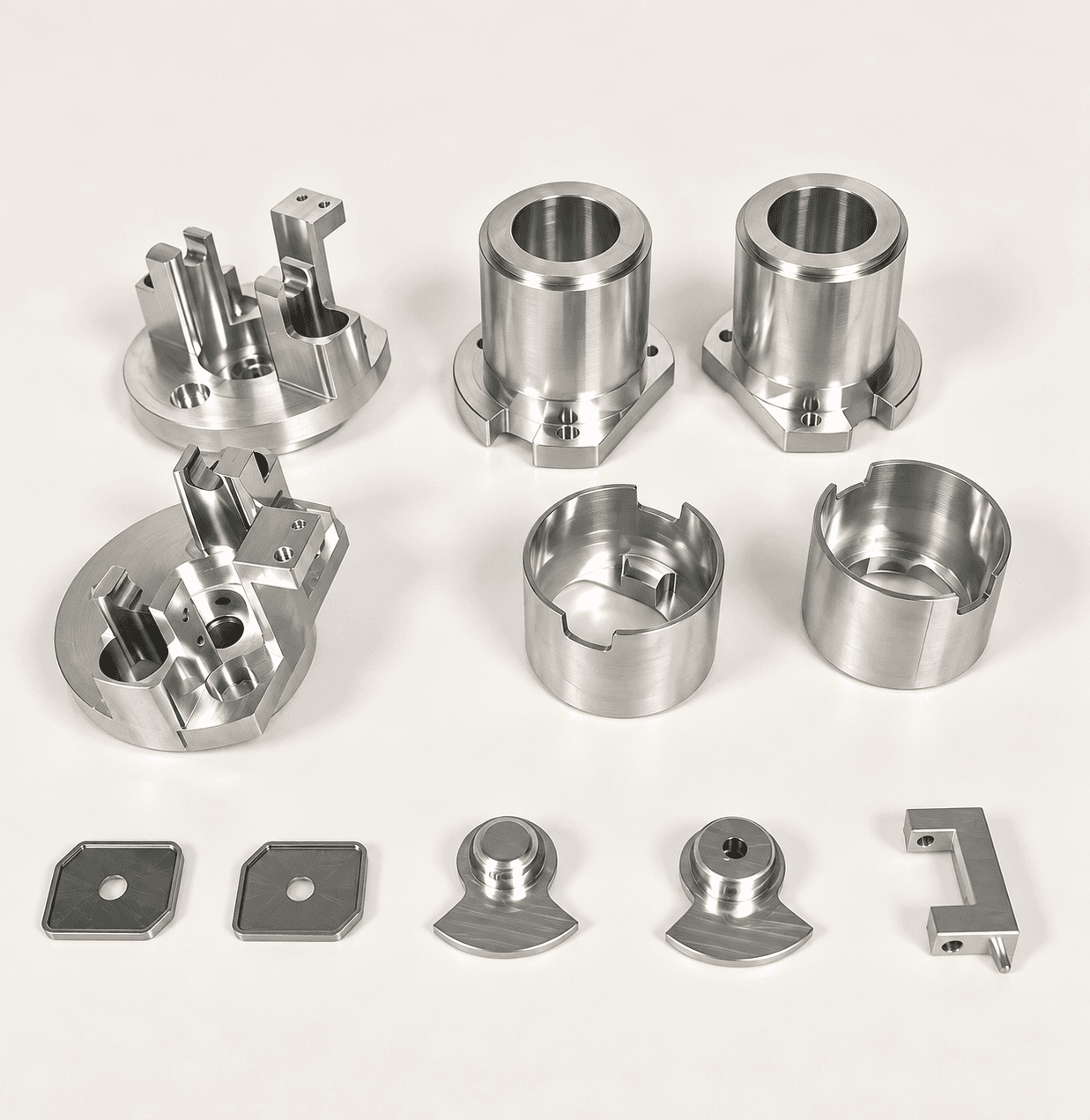

CNC Milling Examples
Representative components illustrate the types of geometry and feature requirements that may be reviewed for CNC milling.
Production flexibility
From Prototype to Repeat Production
Begin with the quantities needed for design and functional review, then continue into low-volume or repeat requirements as the project develops.
- 01
Prototype
Components for fit checks, design evaluation and early functional review.
- 02
Low Volume
Controlled quantities for pilot builds, testing and initial project requirements.
- 03
Repeat Production
Ongoing manufacturing support based on confirmed drawings and project requirements.
Start a project
Have a CNC Milling Project?
Send us your drawings, quantities, materials and key requirements. Our team will review the project and provide manufacturing feedback with a quotation.
